Powerful safe and reliable ultra-long distance
Narrow-band high-speed rich frequency band flexible interface
Super LoRa Series of Network & Serial Radio
Description
The Super-LoRa in brief：
- Frequency bands of 135 – 175, 215 – 240, 400 – 520, 757 – 758 and 787 – 788, 896 – 902 and 928 – 960 MHz
- RS-232 and IEEE 802.3 protocols with multiple port options
- Software selectable 12.5 kHz, 15 kHz, 25 kHz 30 kHz and 50 kHz channel sizes. For other channel sizes please consult WDS
- Full and half duplex operation
- Single or dual frequency
- Gross data rates greater than 200 kbit/s
- 256, 192 or 128 bit AES encryption
- Adaptive Coding and Modulation: QPSK to 64 QAM
- Advanced forward error correction
- Ethernet and IP / TCP / UDP header compression
- (ROHC) and payload compression
- Software selectable dual / single antenna port operation
- Transparent to all common SCADA protocols
- Dedicated alarm port
- Protected master station and remote station options
- Power optimized option
- Radio GPS coordinates
- –40 to +70 °C operational temperature
- 210 mm (W) x 130 mm (D) x 41.5 mm (H)
- FCC and IC standards compliant
- Seamlessly integrates with Aprisa XE point-to-point radio
performance:
- High capacity: to meet the growing number of data-intensive applications in the SCADA environment, the Super-LoRa provides data rates of up to 216 kbit/s in 50 kHz licensed channels.
- Secure: with its defense in depth approach, including AES encryption, authentication, address filtering and user access control including RADIUS, the Super-LoRa protects against vulnerabilities and malicious attacks.
- Future-proof: the Super-LoRa supports multiple serial and Ethernet interfaces in a single, compact form factor, and is standards-based for long term incorporation into SCADA networks while protecting the legacy investment in serial devices.
- Advanced L2 / L3 capabilities: selectable L2 Bridge or L3 Router modes, with VLAN, advanced QoS,filtering and IP header and payload compression attributes to support narrow bandwidth channels and mission critical traffic while meeting increasing security and IP network policy requirements. Advanced payload and Ethernet / IP / TCP / UDP header compression.
- Adaptable: the Super-LoRa integrates into a range of network topologies, with each unit configurable as a master station, repeater or remote station; connect multiple RTUs / PLCs to a single radio.
- Flexible interfaces: the data interfaces can be configured for serial or Ethernet operation; a range of options are supported, including two serial and two Ethernet, one serial and three Ethernet, or four Ethernet ports. Support for NMEA GPS receiver option.
- Link efficiency: Adaptive Coding and Modulation (ACM) and forward error correction maintains the integrity of the wireless connection while an effective channel access scheme and IP routing ensures efficient transfer of data across the Super-LoRa network.
- Reliable and robust: the Aprisa SR+ requires no manual component tuning and maintains its high power output and performance over a wide temperature range.
- Easily managed: an easy to use GUI supports local element management via HTTPS and remote element management over the air and SNMP support allows network-wide monitoring and control via a variety ofsupported third party network management systems.
Super LoRa Series of Network & Serial Radio Technical Specifications
| Overview | |
| NETWORK TOPOLOGY | Point-to-multipoint(PMP),Master,Remote,Repeater |
| NETWORK INTEGRATION | Serial and Ethernet(router or bridge mode) |
| PROTOCOLS | |
| ETHERNET | IEEE802.3，802.1d/q/p |
| SERIAL | Legacy RS-232 transport |
| WIRELESS | Proprietary |
| SCADA | Transparent to all common SCADA protocols such as Modbus, IEC 60870-5-101/104, DNP3 or similar |
| RADIO | |
| FREQUENCY RANGE | 150 MHz 135 – 175 MHz 0.625 kHz |
| 230 MHz 215 – 240 MHz 0.625 kHz | |
| 400 MHz 400 – 470 MHz 6.25 kHz | |
| 450 MHz 450 – 520 MHz 6.25 kHz | |
| 700 MHz 757 – 758 & 787 – 788 MHz 6.25 kHz | |
| 896 MHz 896 – 902 MHz 6.25 kHz | |
| 928 MHz 928 – 960 MHz 6.25 kHz | |
| CHANNEL SIZE | 12.5 kHz, 15 kHz, 25 kHz, 30 kHz and 50 kHz software selectable |
| DUPLEX | Single frequency half-duplex Dual frequency half-duplex Dual frequency full-duplex |
| FREQUENCY STABILITY | ± 0.5 ppm |
| FREQUENCY AGING | < 1 ppm / annum |
| TRANSMITTER | |
| MAX PEAK ENVELOPE POWER (PEP) | 10.0 W (+40 dBm) |
| AVERAGE POWER OUTPUT | 64 QAM 0.01 – 2.5 W (+10 to +34 dBm, in 1 dB steps) |
| 16 QAM 0.01 – 3.2 W (+10 to +35 dBm, in 1 dB steps) | |
| QPSK 0.01 – 5.0 W (+10 to +37 dBm, in 1 dB steps) | |
| 4-CPFSK 0.01 – 10.0 W (+10 to +40 dBm, in 1 dB steps) | |
| ADJACENT CHANNEL POWER | < –60 dBc |
| TRANSIENT ADJACENT CHANNEL POWER | < –60 dBc |
| SPURIOUS EMISSIONS | < –37 dBm |
| ATTACK TIME | < 1.5 ms |
| RELEASE TIME | < 0.5 ms |
| DATA TURNAROUND TIME | < 2 ms |
| EMISSION DESIGNATOR SUFFIX | QPSK G1D, QAM D1D |
| RECEIVER 12.5 kHz 25 kHz 50 kHz | |
| SENSITIVITY (BER < 10-6) | 64 QAM –103 dBm –99 dBm –96 dBm |
| 16 QAM –110 dBm –107 dBm –104 dBm | |
| QPSK –115 dBm –112 dBm –109 dBm | |
| 4-CPFSK –113 dBm –110 dBm –107 dBm | |
| ADJACENT CHANNEL SELECTIVITY | > –47 dBm > –37 dBm > –37 dBm |
| [> 48 dB] [> 58 dB] [> 58 dB] | |
| CO-CHANNEL REJECTION max coded QPSK | > –10 dB |
| CO-CHANNEL REJECTION max coded 64 QAM | > –20 dB |
| INTERMODULATION RESPONSE REJECTION | > –35 dBm [> 60 dB Note 1] |
| BLOCKING OR DESENSITISATION | > –17 dBm [> 78 dB Note 1] |
| SPURIOUS RESPONSE REJECTION | > –32 dBm [> 63 dB Note 1] |
| FORWARD ERROR CORRECTION | Variable Reed Solomon plus convolutional code |
| ADAPTIVE BURST SUPPORT | Adaptive Coding and Modulation |
| SECURITY | |
| DATA ENCRYPTION | 256, 192 or 128 bit AES |
| DATA AUTHENTICATION | CCM |
| INTERFACES | |
| ETHERNET | 2, 3 or 4 port RJ45 10/100Base-T switch (specified at order) |
| SERIAL | 2, 1 or 0 port RJ45 RS-232 (specified at order) Additional RS-232 / RS-485 port via USB converter (optional) |
| MANAGEMENT | 1 x USB micro type B (device port) 1 x USB standard type A (host port) 1 x Alarm port RJ45 |
| ANTENNA | 2 x TNC 50 ohm female Software selectable single or dual port operation |
| LEDs | Status: OK, MODE, AUX, TX, RX Diagnostics: RSSI, traffic port status |
| TEST BUTTON | Toggles LEDs between diagnostics / status |
| PRODUCT OPTIONS | |
| DATA PORT CONFIGURATION | 2 x Ethernet ports + 2 serial ports 3 x Ethernet ports + 1 serial port 4 x Ethernet ports |
| POWER OPTIMIZED | Providing optimized power and sleep mode |
| PROTECTED STATION | Providing hot-swappable / hot-standby redundant hardware switching (13.8 VDC or 48 VDC) |
| GPS RECEIVER | Support for NMEA GPS receiver with radio coordinates |
| POWER | |
| INPUT VOLTAGE | 10 – 30 VDC (13.8 V nominal) |
| RECEIVE All bands | < 3 W (217 mA at 13.8 VDC) in active receive state < 2 W (145 mA at 13.8 VDC) in idle receive state < 0.5 W (36 mA at 13.8 VDC) in sleep mode |
| TRANSMIT 135 and 220 MHz | < 26 W (1884 mA at 13.8 VDC) |
| 400, 450, 700, 896, 928 MHz | < 28 W (2028 mA at 13.8 VDC) |
| MECHANICAL | |
| DIMENSIONS | 210 mm (W) x 130 mm (D) x 41.5 mm (H) 8.27” (W) x 5.12” (D) x 1.63” (H) |
| WEIGHT | 1.25 kg (2.81 lbs) |
| MOUNTING | Wall, Rack or DIN rail |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | –40 to +70 ˚C (–40 to +158 ˚F) |
| HUMIDITY | Maximum 95 % non-condensing |
| MANAGEMENT & DIAGNOSTICS | |
| LOCAL ELEMENT | Web server with full control / diagnostics Partial diagnostics via LEDs and test button Software upgrade from PC or USB flash drive |
| REMOTE ELEMENT | Over-the-air remote element management with control / diagnostics Network software upgrade over-the-air |
| NETWORK | SNMPv2 and SNMPv3 security support for integration with external network management systems |

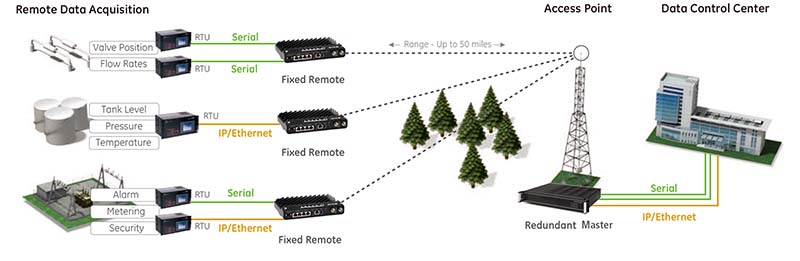

Super-LoRa applications:
- Electricity grid: distribution automation control and protection in MV / HV distribution / transmission
- Smart grid: concentrator communications and GPRS replacement
- Oil & Gas: production metering, lift pump automation
- AMI / AMR: high density data concentrator backhaul
- Renewables: wind farm, tidal, hydro automation
- Water and wastewater: flow, level, pressure modulation automation and pump status
