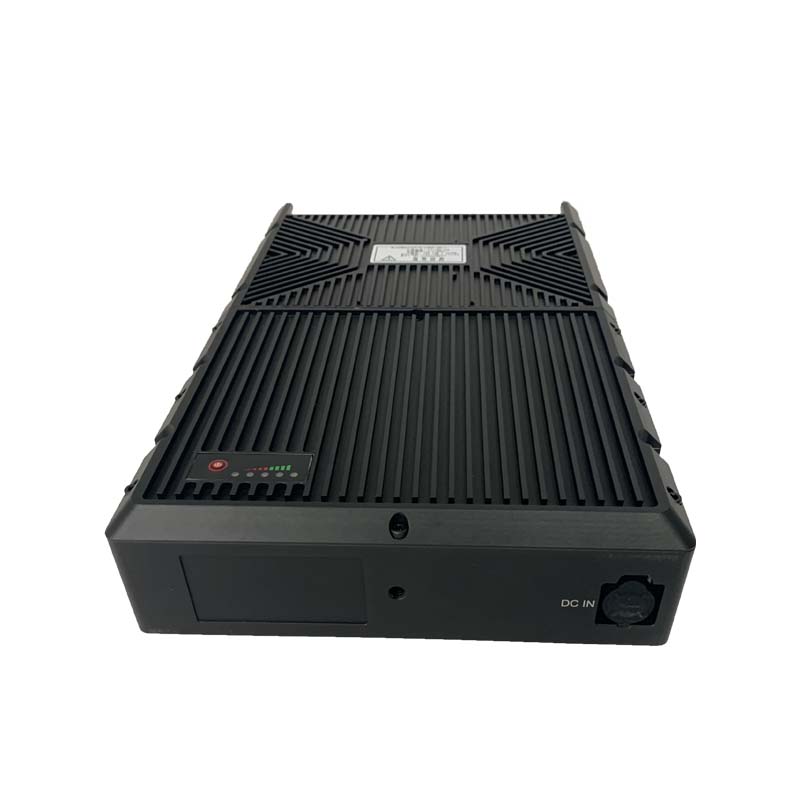

SmartMesh Backpack Radio

SmartMesh Backpack Radio

SMARTmesh series wireless broadband AD hoc network radio, using the latest generation of software radio (SDR) platform, with long distance, high speed, fast access to the network, fast route switching, flexible networking, 2x2MIMO, abundant frequency band (frequency can be customized), abundant interface, small size, light weight and other advantages. The radio has high integration, low power consumption, compact design, module/airborne/handheld/vehicle/load/outdoor base station and other forms, supporting 0.25Watts x2/0.5Watts x2/1Watts x2/2Watts x2/4Watts x2/5Watts x2/10Watts x2/20Watts x2/40Watts x2/50Watts x2 power output.

SMARTmesh has a high security level and supports multiple encryption modes. Powerful LPI/LPD performance, support frequency hopping, intelligent frequency selection; Support a variety of working modes, point-to-point, pointto-multipoint, multipoint to multipoint; Flexible networking, star network, chain network, mesh network and hybrid network topology. SMARTmesh radio can be widely used in the networking and control of intelligent terminals such as drones, unmanned vehicles, unmanned ships, robots, and can also be applied to individual soldier networking, rescue and disaster relief, emergency communication, intelligent power, forest fire prevention, mine operation, antiterrorism special service, civil air defense and other industries.

Category: SmartMesh Series of Wireless Broadband MESH

Description
Reviews (0)

Description

Product Introduction

SmartMesh series wireless broadband AD hoc network radio, using the latest generation of software radio (SDR) platform, with long distance, high speed, fast access to the network, fast route switching, flexible networking, 2×2MIMO, rich frequency band (frequency can be customized), rich interface, small size, light weight and other advantages. The radio has high integration, low power consumption, compact design, module/airborne/handheld/vehicle/load/outdoor base station and other forms, supporting 0.5Watts×2/1Watts×2/2Watts×2/10Watts×2/20Watts×2 power output.
SmartMesh has a high security level and supports multiple encryption modes. Powerful LPI/LPD performance, support frequency hopping, intelligent frequency selection; Support a variety of working modes, point-to-point, point-to-multipoint, multipoint to multipoint; Flexible networking, star network, chain network, mesh network and hybrid network topology. SmartMesh radio can be widely used in the networking and control of intelligent terminals such as drones, unmanned vehicles, unmanned ships, robots, and can also be applied to individual soldier networking, rescue and disaster relief, emergency communication, intelligent power, forest fire prevention, mine operation, anti-terrorism special service, civil air defense and other industries.

Product features

Main features of SmartMesh Wireless Broadband MESH:

RF performance:

One button boot, set up anywhere.Long distance, high throughput
Anti interference COFDM / broadband carrier frequency hopping can improve link quality in complex RF environment
Excellent multipath and NLOS performance
Adaptive radio modulation from QPSK to 64QAM is continuously optimized per packet to optimize link performance in dynamic environments
Software defines channel sizes for efficient reuse of spectrum
The software defines the operating frequency of the global application
Convolution coding, forward error correction (FEC), ACK retransmission, maximum ratio merge, spatial multiplexing, and space-time block coding are
used for robust data transmission over noise spectrum
Time Division Duplex (TDD) for Bidirectional Transmission

Network performance:

Self-organizing, self-healing mobile Mesh networks, multi-hop routing, dynamic topology
Ultra-Reliable Low Delay Channel for Command and Control (URLLC)
Optimizing video streaming media channels on the same wireless link
End-to-end IP architecture for unicast and multicast traffic
Data transmitted over the air can be encrypted with up to 256-bit AES
ake advantage of the most advanced and scalable OpenWrt ecosystem
Embedded network management APIs

Other:

Small Size, Light Weight, and Low Power-Low Cost(SWAP-C) for Mobile Device Applications
Ethernet and UART interfaces can be easily integrated into different system architectures

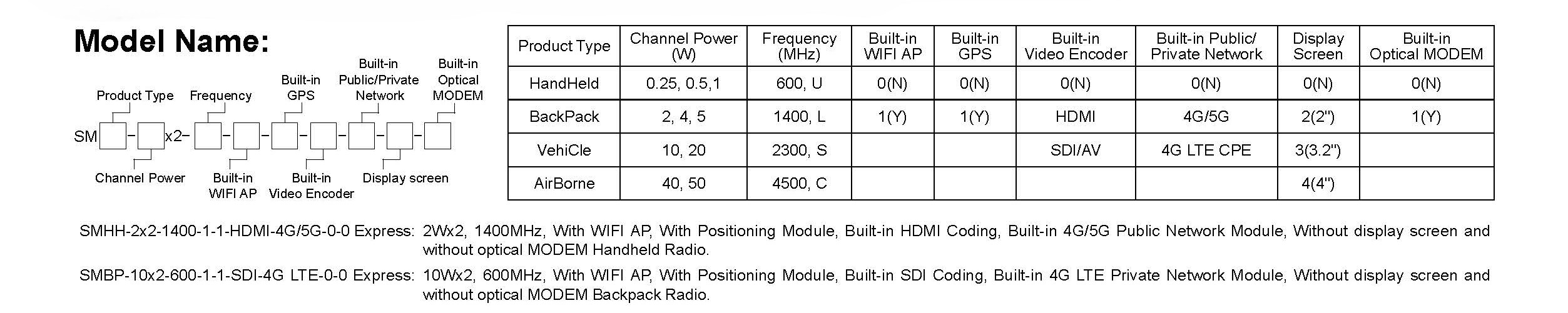

Backpack Radio Specifications

General
SDR Platform, Waveform	9363 or 9361+7Z020, Mobile Network MANET
MIMO Technology	Space-time coding、Receive Diversity、TX /RX beamforming
Receive Sensitivity	-103dBm@5MHz BW
Channel Bandwidth	1.25/2.5/5/10/20MHz setting; Supports transmission and reception with different channel bandwidths, achieving mixed broadband and narrowband
Data Rate	1-70Mbps(20MHz BW) Adaptive, QoS
Modulation Mode	TD-COFDM, BPSK/QPSK/16QAM/64QAM Adaptive(Fixed setting optional)
RF Output Power (Support TPC, transmission power control, 1dBm adjustable)	10Watts x2 20Watts x2
Single Hop Communication Distance	100-300 KM (LOS), 1-30 KM (urban area)
Mode	Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid
Single Hop Delay	Average 10mS(20MHz BW)
Encryption	DES, AES128/256, SM4, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine
Anti-interference Mode	Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference
Local/Remote Management	Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/BD/GLONASS positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional
Others	The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss for three hops and above is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second)
Bands(300M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R at single band)
BAND	Frequency range
VHF/UHF	360-450/450-550/570-700/800-950, 225-400/225-678/320-470*MHz
L Band	1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.2*GHz
S Band	2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*GHz
C Band	4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*GHz
	(Note: RF power, Dimensions, Weight is different)
MIIT	336-344/512-592/566-626/606-678/1420-1520/1430-1444MHz
Environmental
Operation Temperature	-40℃ ~+80℃
Protection Level	IP66,IP67/IP68 Customized
Mechanical
Size/Weight	22.9×18.9×6.2cm/3.86kg (with 22.2V/114Wh battery Backpack Radio)
Installation/Color	4 Mounting Holes/Black, Iron Gray、Army Green Optional
Power
Supply Voltage	18-32VDC
Power consumption	Operation 3-6A/Standby 0.7-0.9A@16.8V
Power Selection	Power Supply by Twist-Lock Battery or Main Cable
Batteries	12/8 hours for 28.8/9.6Ah polymer lithium battery
Interface
Basic interface	2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input
Push to talk/Auxiliary interface	MIC, SP, PTT, GND, RS485/422, USB2.0 OTG
Network Extension	Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite
Video Extension	Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1
Link Status Indicator	Steady red – The network is not connected Blinking red – Starting/not connected to the network Steady green – The network is connected Blinking green – Voice PTT is down
RSSI Link Indicator	Steady green – The link quality is excellent Steady blue – The link quality is good Steady yellow – The link quality is medium Steady purple – The link quality is slightly worse Steady red – The link quality is poor or link is down
Management Interface/ Control Interface	Web-based network management/GUI, API for secondary development interface/SNMP

Application field

This series of products for users, at the top, underground, large complex urban complex building, and earthquakes, floods, landslides and other major catastrophic natural disaster accident rescue under complicated environment, rapid automatic forming a flexible and reliable dynamic routing/jump relay multipoint to multipoint no centre, self-organizing mesh wireless communication network, It provides fast and flexible special wireless communication for hd video, intercom voice, IP network/serial asynchronous data and other services, provides key emergency communication for field joint operation command, and powerful comprehensive data link for uav, unmanned vehicle and other intelligent equipment.

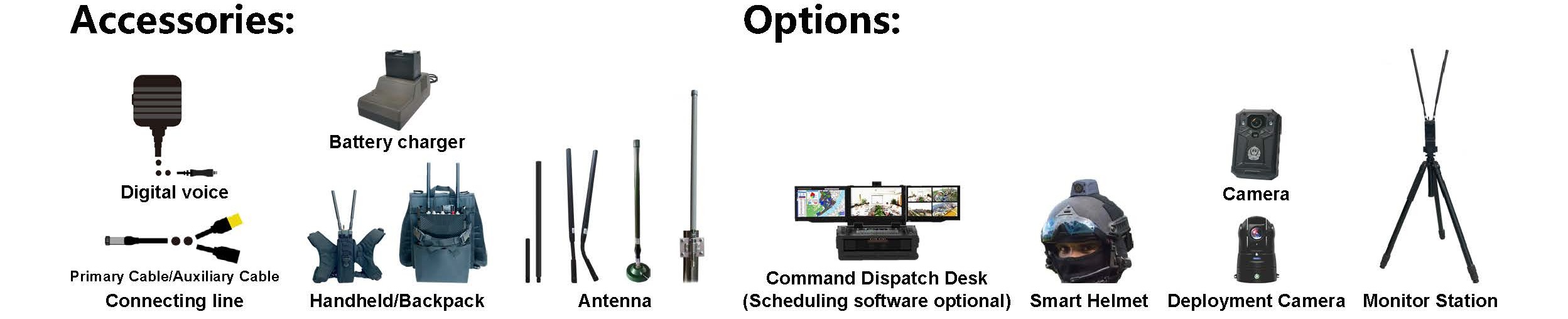

Package

Oem Built-In Integrated Extreme Design For Mesh Networking In Harsh Environments
2 Watts ×2 Transmission Power, Small Size, Light Weight
Rich Interface, Built-In Network Port, Serial Port, High Fidelity (G.722) Intercom Call
Long Distance, High Speed, Flexible Networking, Strong Anti-Interference Ability
