Description

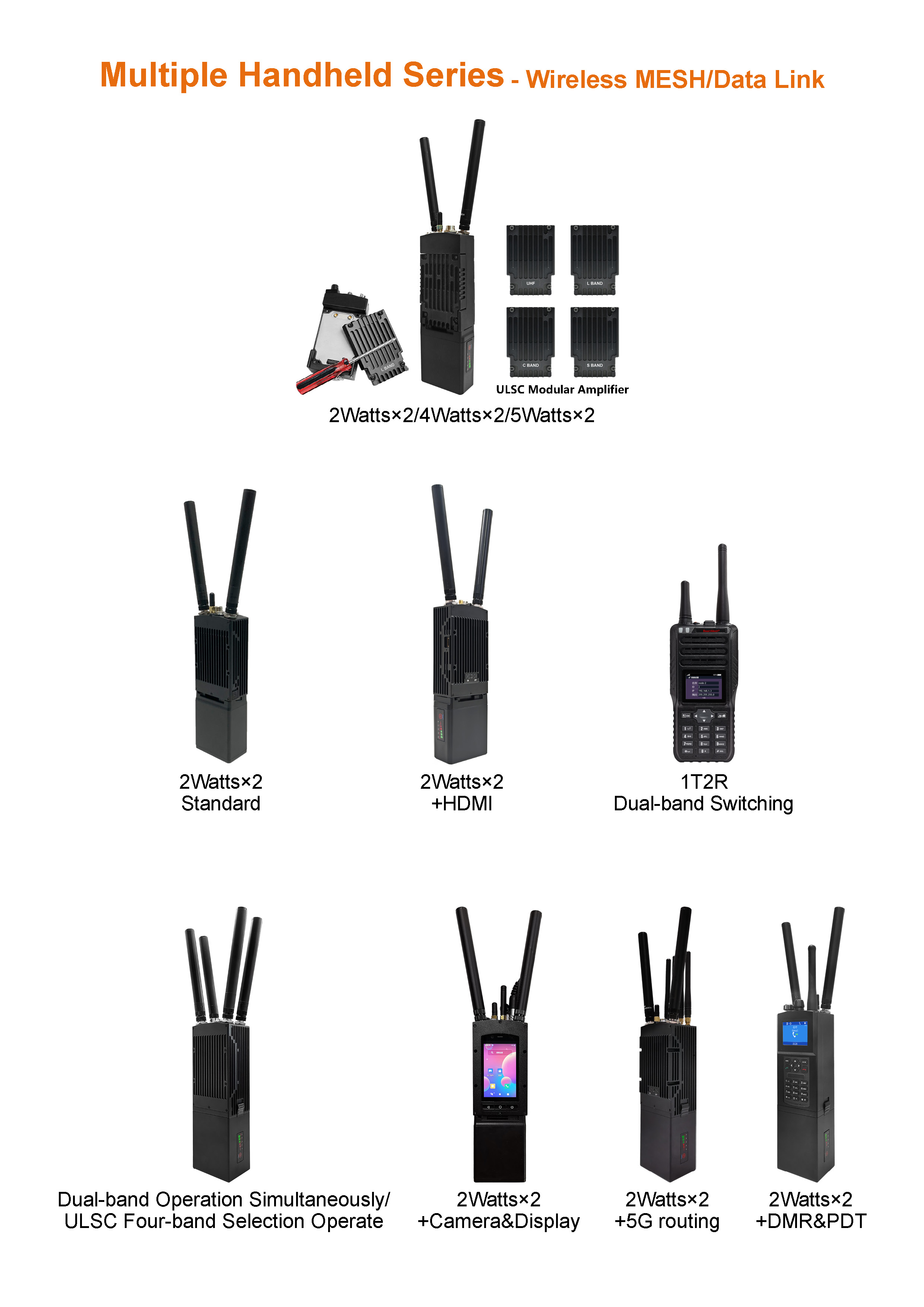

Multiple Handheld Series-Wireless MESH/Data Link Technical Specifications

General
SDR Platform, WaveformAD936X+FPGA (7Z020、7Z030、7Z035、7Z100), Mobile network MANET+MIMO
MIMO TechnologySpace-time coding、Receive Diversity、TX /RX beamforming、Spatial multiplexing
Receive Sensitivity-103dBm@5MHz BW
Channel Bandwidth1.25/2.5/5/10/20MHz (7Z020, 7Z030)/40MHz (7Z035)/80MHz (7Z100, 40MHz+40MHz dual antenna frequency transceiver of carrier aggregation), configurable
Modulation ModeTD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional)

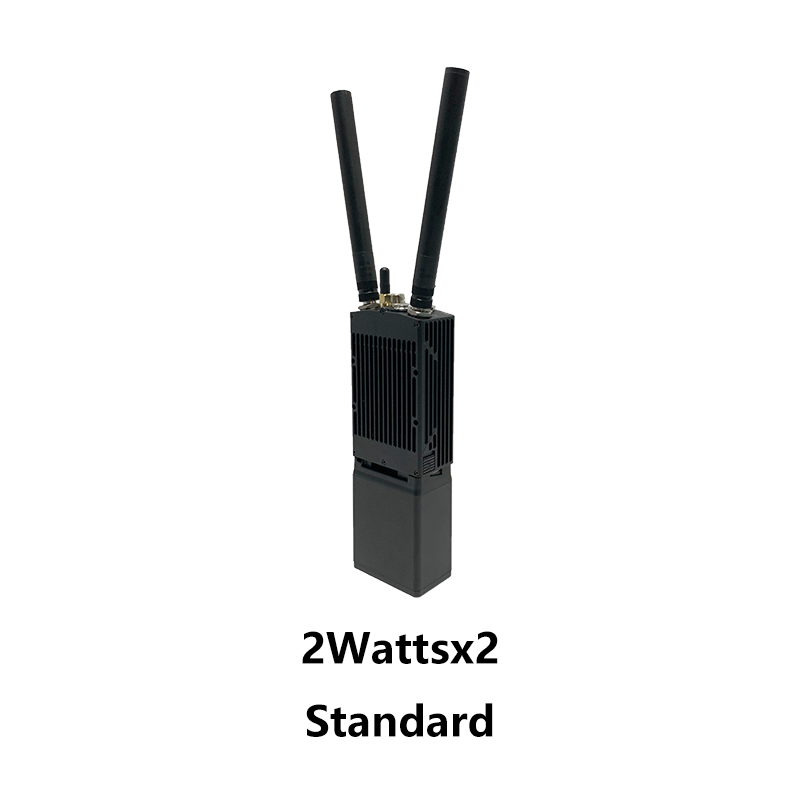

RF Output Power

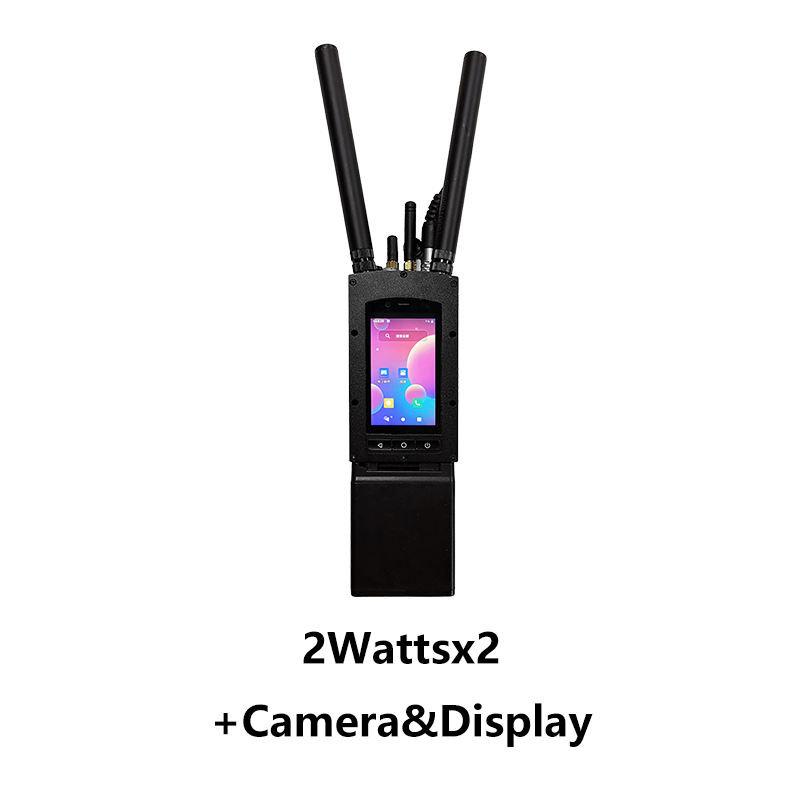

(Support TPC, transmission power control, 1dBm adjustable)		2Watts×2
4Watts×2
5Watts×2
Single Hop
Communication Distance		50-200KM (LOS), 1-30KM (urban area)
ModeDistributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid
Single Hop DelayAverage 6mS (Unidirectional, 20MHz BW)
EncryptionDES, AES128/256 (SM4/SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine)
Anti-Jamming ModeManual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference
Local/Remote ManagementOperating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/BD/GLONASS positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional

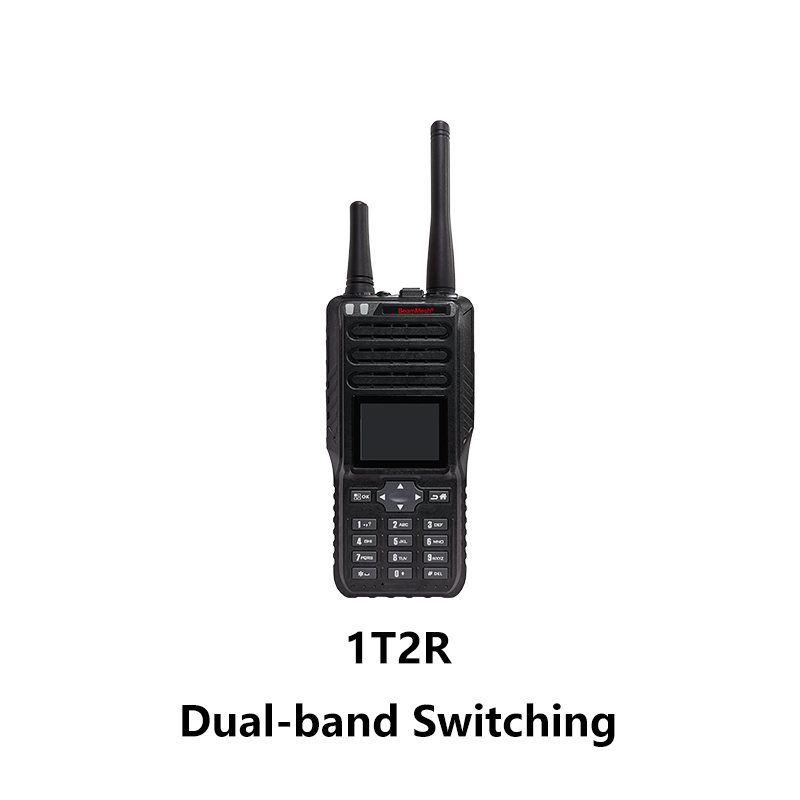

Bands (70M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R at single band or 1T2R at dual-band)
VHF/UHF (MHz)360-450/450-550/570-700/800-950, 225-400/225-678/320-470*
L Band (GHz)1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5*
S Band (GHz)2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*
C Band (GHz)4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*
(Note: RF power, Dimensions, Weight is different)
MIIT (MHz)336-344/512-592/566-626/606-678/1420-1520/1430-1444
Mechanical
Size/Weight19.0×6.8×3.8cm/769g, with 11.1V/77.7Wh battery
22.0×6.8×3.8cm/982g, with 11.1V/114Wh battery

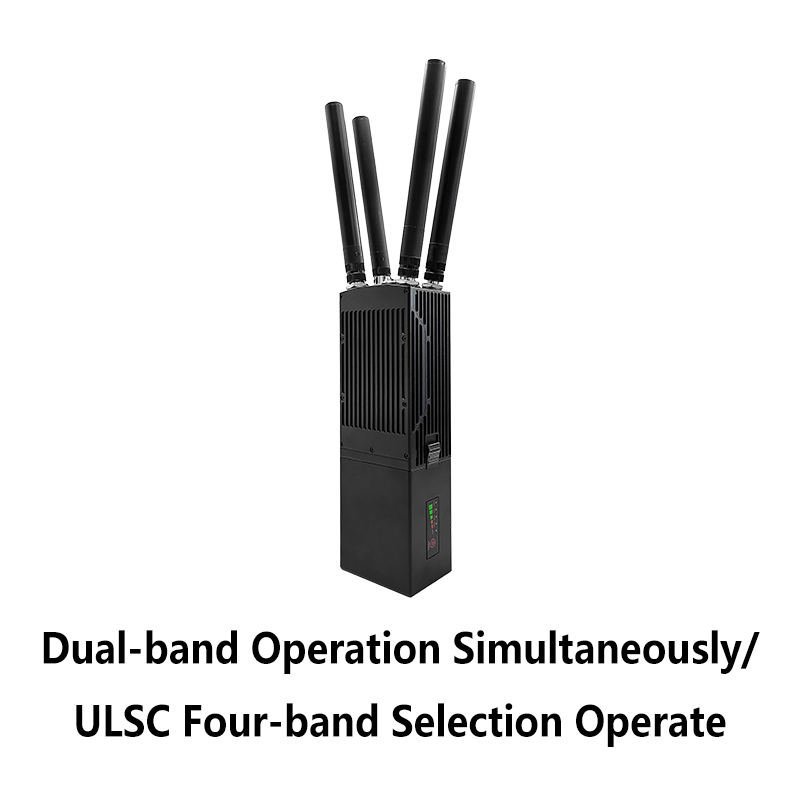

21.0×6.8×5.2cm/972g, with 11.1V/77.7Wh battery Four-band
15.5×6.6×3.2cm/430g, Contains lithium battery, does not include antenna and back clip
Installation/Color4 Mounting Holes/Black, Iron Gray (Army Green Optional)
Power
Supply Voltage9-24VDC, 2Watts×2
12-28VDC, 4Watts×2/5Watts×2
Power consumptionOperation 1-2A/Standby 0.4-0.6A@12V, 2Watts×2
Operation 2-4A/Standby 0.5-0.7A@12V, 4Watts×2/5Watts×2
Power Selection8-10/6-8 hours for 114/77.7Wh polymer lithium battery
Interface
Basic interface2xTNC RF, 1-2xRJ45 Ethernet 100/1000BaseT, RS232, WIFI AP, DC input. GPS/BD, GPS/BD, TTL (UART)/SBus/Bluetooth 1.2-230.4Kbps are available. Supports transparent transmission over Ethernet and serial ports, and all communication protocols, including MAVLink. Selectable service priority

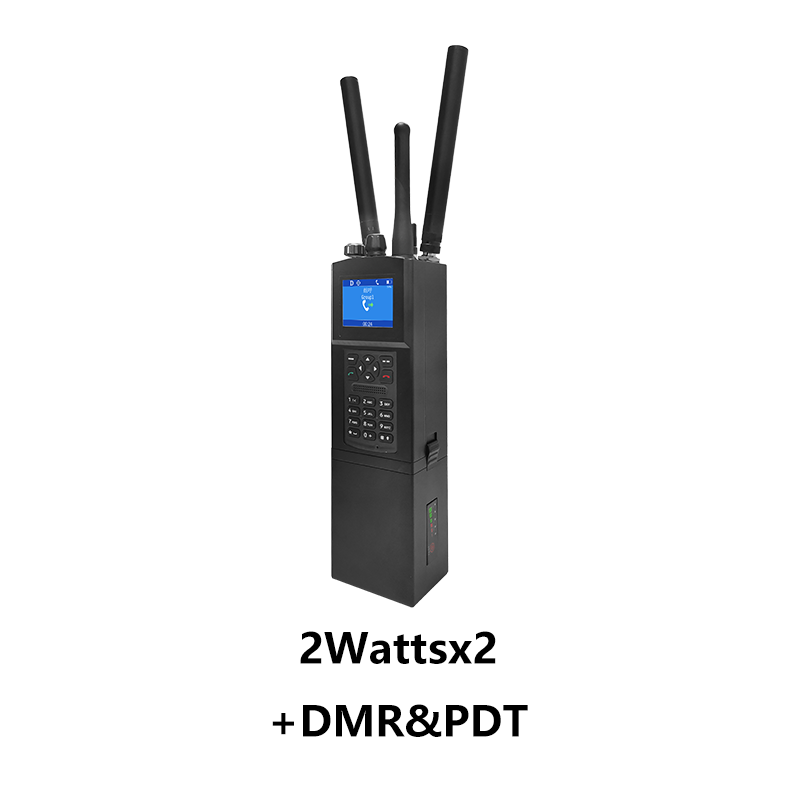

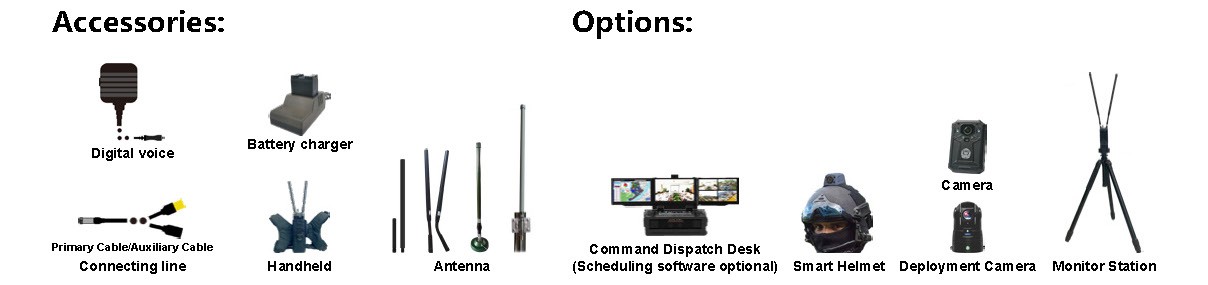

Push to talk/Auxiliary interfaceMIC, SPK, PTT, GND, RS485/422, USB2.0 OTG

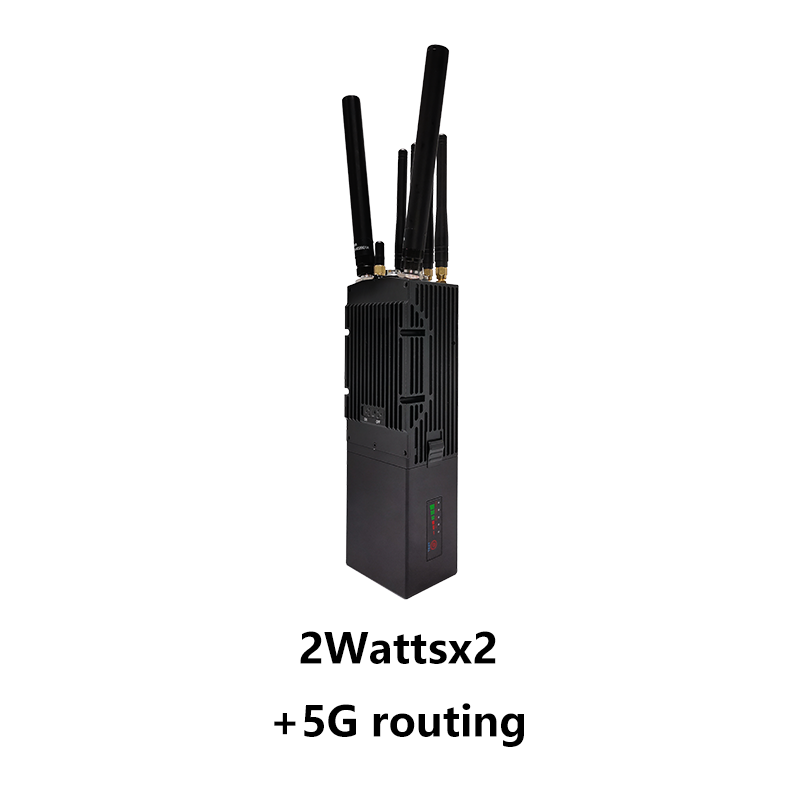

Network Extension OptionalPublic Network Routing/4G LTE, WB-NB integration, Fiber, Satellite

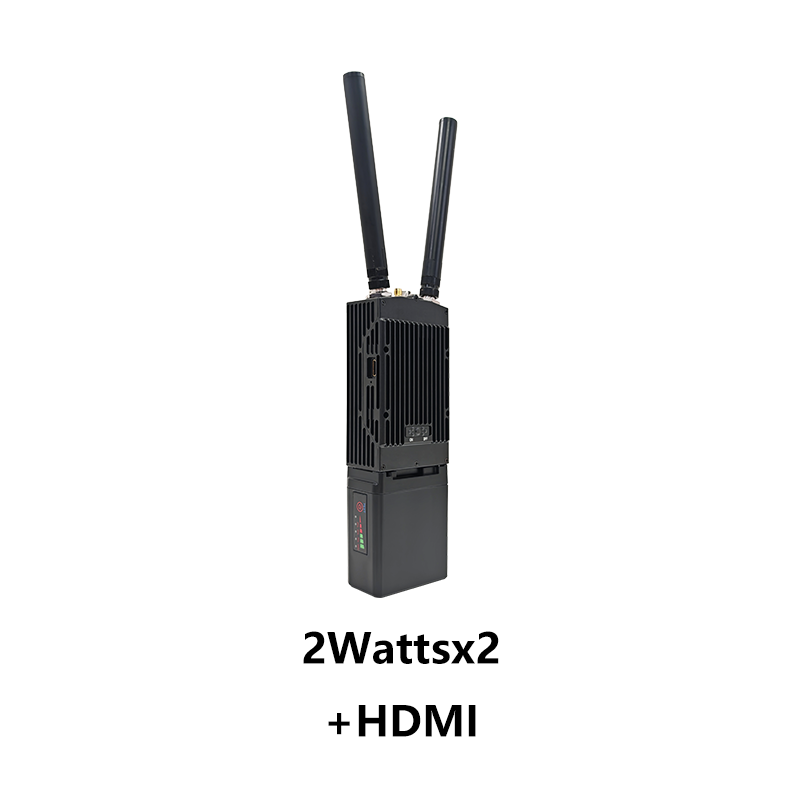

Video Extension OptionalLow Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1
Link Status IndicatorSteady red – The network is not connected
Blinking red – Starting/not connected to the network
Steady green – The network is connected
Blinking green – Voice PTT is down
RSSI Link IndicatorSteady green – The link quality is excellent
Steady blue – The link quality is good
Steady yellow – The link quality is medium
Steady purple – The link quality is slightly worse
Steady red – The link quality is poor or link is down
Management Interface/
Control Interface		Web-based network management/GUI, API for secondary development interface/SNMP
Environmental
Operation Temperature-40℃ ~+80℃
Protection LevelIP66 (IP67/IP68 Customized)

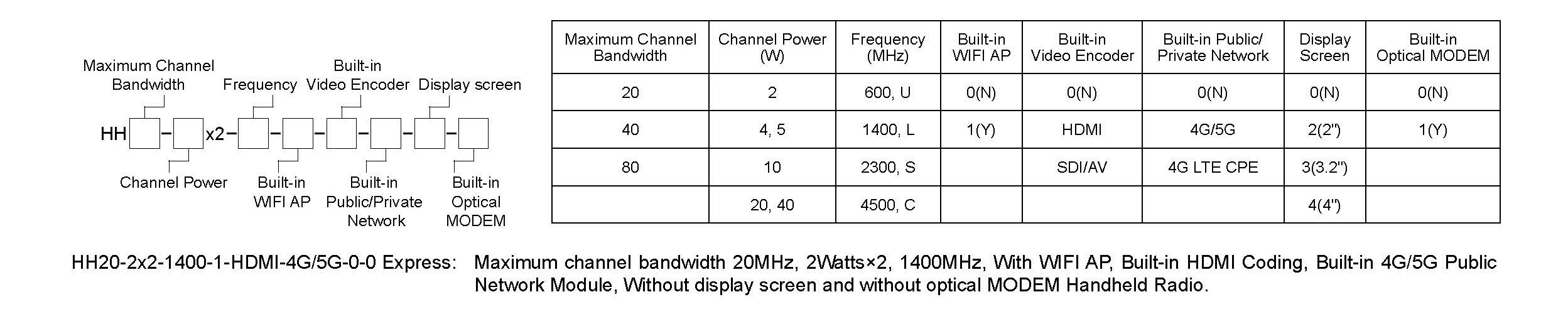

Model Name:
